L
T-08S-II LED Tester provides you an intelligent solution for LED testing, designed with an accurate measurement of LED color and intensity of light. It is suitable for ICT testers and simple functional testers. You can obtain stepped various voltage levels for colors and intensity identified by voltages through ATE, ICT and FCT. The easy to use feature is your best choice for LED testing.
Features
No specific software driver required
Eight colors identification by 8 stepped voltage levels (0-4V)
Intensity indicated by stepped voltage levels (0-4V), 0.1V per step
Compact size for space saving
Flexible optical fiber to meet various angles of LEDs
Convenient connection to ATE, ICT (Teradyne, Agilent, TRI…) test pins by cable/wire
Test 8 LEDs simultaneously
By Daisy Chain connection with LT-08M-II to perform functional test up to 512 LEDs
Applications
Automotive - Dashboards / Brake Lights / Daytime Running Lights
elecommunication – Cell Phones / Backlight Modules / Smart Phones / Netcom Products
Any PCBs and finished products with LEDs

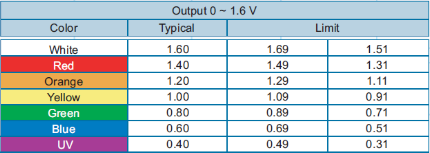

Color
|
